Open the Falcon BMS Alternative Launcher (Launcher\FalconBMS_Alternative_Launcher.exe).
Assign Axes
Click AXISASSIGN and map the following Axes:
- Roll
- Pitch
- Throttle
- Yaw
If you have rudder pedals:
- Toe Brake
- Toe Brake Right
If you have a HOTAS with a cursor slew and/or rotary axes
- Cursor X
- Cursor Y
- Antenna Elevation
- Range Knob
Assign Buttons
Click KEYMAPPING.
Set the Profile dropdown to F-15.
Assign Control Stick
Set the Category dropdown to CENTER CONSOLE. Scroll down and find the section for CONTROL STICK.

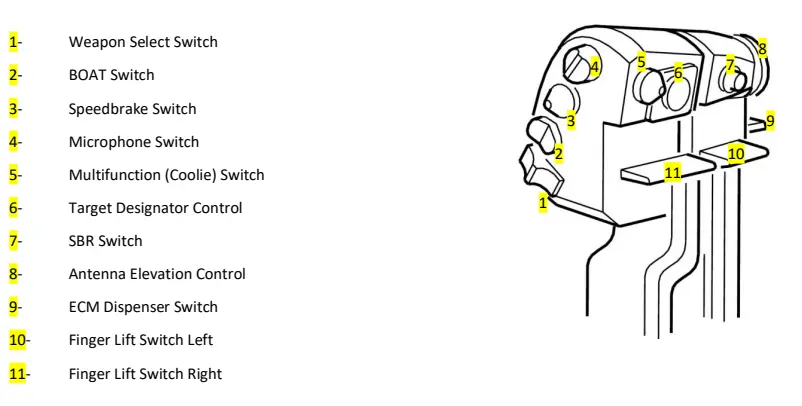

Map the controls in the diagram to your stick as you see fit. Reference Docs\02 Aircraft Manuals & Checklists\TO 1F-15C-1 BMS.pdf, section 4.1.2.2.49 for a description of functions.
All controls on the stick are important.
Assign Throttle
Set the category dropdown to LEFT CONSOLE. Scroll down and find the section for THROTTLE.
Assign the controls as you see fit. Reference Docs\02 Aircraft Manuals & Checklists\TO 1F-15C-1 BMS.pdf, section 4.1.2.1.16 for a description of functions.
The finger lift switches are only used during startup and may be best bound to your keyboard, depending on what type of throttle you have.
The SBR switch has no function in BMS 4.37.
Assign Other Controls
Assign any other controls as you see fit. Reference Docs\02 Aircraft Manuals & Checklists\TO 1F-15C-1 BMS.pdf, Section 4 for a description of cockpit layout and switch functions.
You’ll probably need GEAR: LG Handle, ACAS (autopilot). You might find RADAR convenient to bind to a button box or keyboard. Flaps in the F-15 are automatic, so no need to bind them somewhere convenient.
